PROJECT

Design of An Exhibition Center

| 10 August, 2023 | | Total Views: 10 |

Student Name:	Mehedi Hasan Shuvo
Year:	2021
Studio:	Level-2, Term-2
Institute:	Military Institute of Science and Technology
Studio Teachers:	Syed Abu Salaque, Chowdhury Ali Imam & Kazi Zayed Titumir
Typology:	Public Building
Height:	55 ft
Land Area:	26,000 sqft
Build Area:	15,500 sqft
Basement:	None/Surface parking Car: 02 nos.
Location:	Military Institute of Science and Technology, Mirpur

Project Brief: The Military Institute of Science and Technology (MIST) have thirteen different departments. Students are working here on many interesting projects which are getting awards both at home and abroad. But there is no scope for exhibiting these projects. In some cases, students from one department may not know what is going on in the other part of the institute.

Also, there are many club activities in the institute that could show different showcasing. In this situation, the necessity of an exhibition space is cryingly felt. This studio aims at exploring the design of such an exhibition center for MIST that will facilitate students with the scope of exhibiting their works.

Concept behind the design was “Gradual Upliftment of Sagacity”. That defines the gradual development in students’ creative mind. And the form also follows this concept..

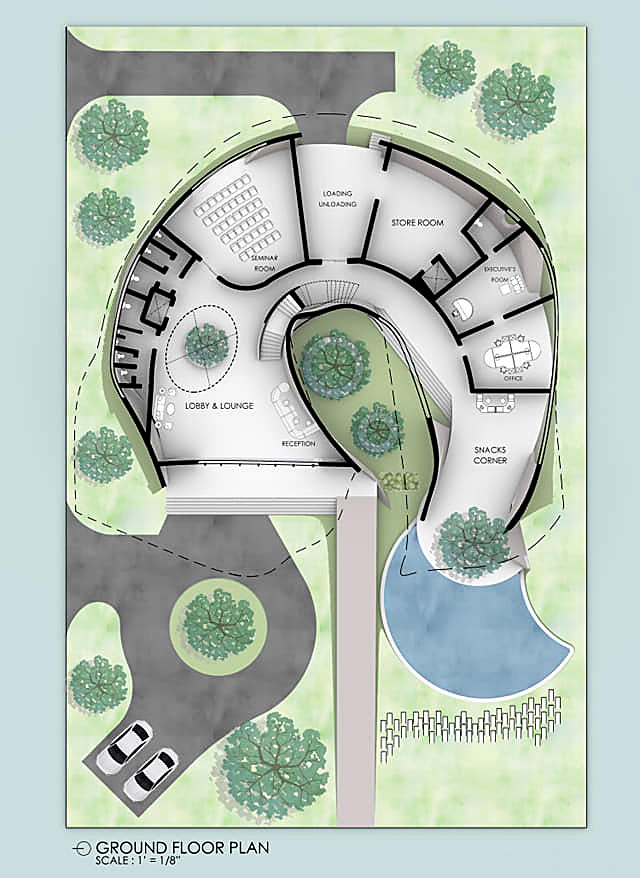

Programs:
• Reception
• Lobby and Lounge
• Exhibition space (maximum capacity: 100 visitors)
• Seminar room (30 people)
• Store facilities
• Office for 05 staffs
• Common Toilet (02 water closets for female toilet, 02 water closets and 02 urinals for male toilet, one universal accessible toilet), Janitor facility
